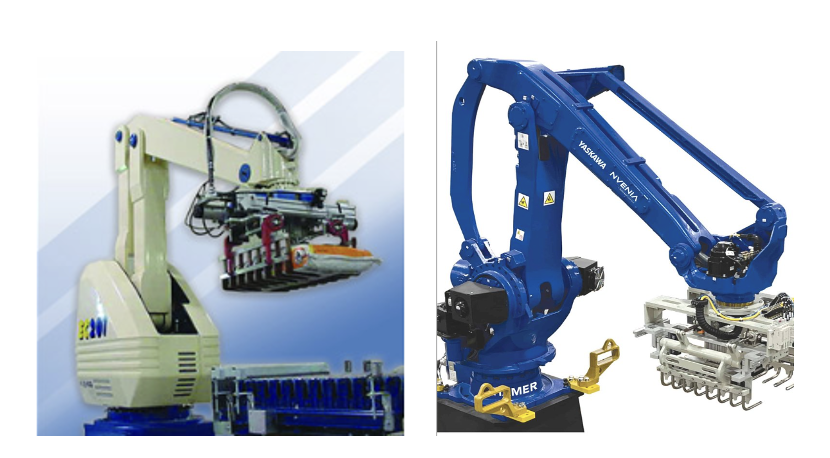

Robotic Bag Palletizer
Bag palletizers receive bags from a transfer conveyor and can stack up to 25 bags/min. on a pallet.
Other Options:
Allen Bradley® PLC with Touchscreen
Hamer EasyPic™ Operator HMI
NEMA 4X controls and robot protection packages
Corrosion resistant packages for conveyors, robot arm, controls
Various power options
Bag Clamp
Case Grip
Fork Style
Pallet pick/place
Slip-sheet pick/place
Auto tool change
Auto height sensor
Custom conveying
Automatic pallet dispenser
Automatic slip sheet dispenser
CDLR full pallet conveyors
90 degree full pallet transfer
Quad muting light curtains
Integrated automatic stretch wrapper or stretch hooder
Automated, semi-automated or manual bagging systems
Depending on the system, a robotic bag palletizer may include: a bag flattening conveyor, a bag accumulation station, a bag positioning conveyor, a layering conveyor, a robotic bag loader, an empty pallet dispenser, a filled pallet dispenser, a pallet check-weigher, and a pallet stretch wrapper. Semi-automated bag palletizers require an operator while fully automated bag palletizers have a robotic stacker.
Standard Features:
Up to 28 picks/min.
Bag, case, pail/bucket palletizing
Small footprint systems
Programmable/selectable pallet patterns
Yaskawa/Motoman 4-axis servo industrial robot
160KG/320 lb. capacity robot arm
DX 100 robot control panel
Robot mounting base
Robot teach pendant
Industry standard wire mesh safety guarding with interlock access door
Safety compliant to ANSI/RIA Safety requirements
NEMA 12 Enclosure
